HELIX is ECU calibration data management software. Calibration teams upload an A2L / ASAP2 ECU description, attach a base HEX/S19/SREC dataset, import multiple DCM/CDFX/PACO calibration change packages, compare and merge changes under governance, run validation gates, and generate the final ECU-ready calibration release artifact.

Does HELIX replace my existing calibration data workflow or work alongside it?

HELIX is designed to sit in the calibration data-management flow. Teams can keep upstream measurement analysis and ECU documentation tools separate while using HELIX to govern A2L/base dataset ingestion, patch batches, variant comparison, merge review, validation evidence, and release artifact generation.

What ECU calibration files does HELIX manage?

HELIX manages ECU description and calibration dataset files including A2L / ASAP2, base HEX/S19/SREC, and calibration change packages such as DCM, CDFX, and PACO. It is focused on calibration data governance and release generation, not oscilloscope analysis or ECU documentation viewing.

Is HELIX the oscilloscope or vehicle-data viewer?

No. MDX is the Vehicle Lab app for vehicle/ECU data viewing and oscilloscope analysis. HELIX is the ECU calibration data-management app for A2L/base dataset handling, DCM/CDFX/PACO patch management, validation, and release generation.

Does HELIX generate the final ECU calibration file?

Yes. HELIX is positioned around compiling reviewed and validated calibration changes into the final ECU-ready dataset or release artifact, such as HEX or S19, with release evidence and audit traceability.

hub

HELIX

Flow Ingest Patches Release QA Screens

Book a demo

ECU data management

HELIX: ECU calibration
data management.

Name: HELIX
Author: Vehicle Lab

Upload the ECU description and base dataset, import multiple DCM/CDFX/PACO change batches, compare and merge variants, run validation gates, and generate the final ECU-ready calibration release file.

Book a demo arrow_forward See how it works

descriptionA2L

ECU description

memoryHEX/S19

base dataset

differenceDCM

patch batches

verifiedRelease

final ECU file

HELIXWF0605 · calibration release

account_tree

MG1CS051_H443_2C.a2l description

Base.hex baseline

DCM batch

change packages

variants

merge candidates

                                    [PASS] A2L symbols resolved
                                    [PASS] patch conflicts reviewed
                                    [PASS] validation gates complete
                                    [BUILD] BOSCHVC999_release.s19


layers

Patch batches

reviewed

memory

Final file

ECU-ready

Why Helix

Calibration releases break when dataset changes are scattered across files and teams.

apps

Patch batches arrive from everywhere

Each engineer or supplier sends calibration deltas as separate DCM, CDFX, or PACO packages. HELIX turns them into one controlled release candidate.

paid

Manual merge is risky

Maps, curves, scalars, and axes need shape-aware comparison. HELIX surfaces conflicts before one patch silently overwrites another.

verified

Final files need evidence

A release is not just a binary. HELIX keeps the link between source A2L, base dataset, approved changes, validation result, and final ECU artifact.

How it works

From ECU description to final release file

HELIX controls the calibration data-management path. MDX handles data viewing. XHandbook handles ECU documentation. HELIX governs the dataset.

1 description

Describe

Upload the A2L / ASAP2 file so HELIX knows ECU symbols, maps, curves, scalars, axes, units, and memory layout.

2 memory

Baseline

Attach the base ECU dataset: HEX, S19, or SREC. HELIX maps calibration values back to the A2L-defined memory regions.

3 difference

Patch

Import multiple DCM, CDFX, or PACO change packages from calibration work packages and suppliers.

4 merge

Review

Compare variants, surface conflicts, approve changes, and preserve audit evidence before a release is frozen.

5 verified

Generate

Compile the approved calibration state into the final ECU-ready HEX/S19 release artifact with validation status attached.

upload_fileIngest

A2L plus base ECU dataset, mapped together

HELIX starts by pairing the ECU description with the actual calibration binary. That pairing is the foundation for every patch, comparison, validation, and release decision that follows.

description

A2L / ASAP2 symbol model

Resolve characteristics, measurements, axis points, record layouts, limits, units, and memory addresses before anyone edits a value.
memory

Base HEX/S19/SREC memory image

Load the baseline ECU dataset and keep memory-region handling explicit, so out-of-range extraction and malformed records fail loudly.
table_view

Calibration map extraction

Expose maps, curves, and scalar values as governed calibration objects instead of loose spreadsheet rows.

folder_openProject_Engine_V8_Turbo

resolved

Base_Map.a2lASAP2

Base.hexmemory regions

BOSCHVC999_release.s19target

                                [INFO] parsing ASAP2 metadata
                                [INFO] mapping HEX memory regions
                                [PASS] symbols mapped to dataset


differencepatch review

merge ready

WP_Ignition_v2.dcmapproved

Supplier_BoostSafety.cdfx2 conflicts

ColdStart_PACO_04.pacoapproved

conflict: KFMIOP[12,14]

- base value 0.842

+ candidate 0.861

differencePatch management

Multiple calibration changes, one controlled truth

HELIX is where scattered calibration deltas become a governed release candidate. It compares change batches against the base dataset and against each other before they can become the final ECU file.

upload

Batch import

Bring in DCM, CDFX, and PACO packages from multiple engineers, work packages, suppliers, or vehicle variants.
compare_arrows

Delta comparison

See exactly which maps, curves, scalar values, axes, and address-backed bytes changed across each patch batch.
rule

Conflict routing

Shape-aware conflicts are sent to review instead of silently overwriting another engineer's calibration work.

Release control

Freeze the reviewed calibration state

HELIX should never imply a release is ready when the base dataset, calibration package set, validation evidence, or compiled artifact is missing.

inventory_2

Work package freeze

Approved deltas are locked for release review.

fact_check

Validation evidence

Rules and readiness checks travel with the release.

memory

Compiled artifact

Generate the final HEX/S19/SREC release output.

history

Audit trail

Who changed what, when, why, and from which package.

verified_userQuality gates

Fail loudly before the wrong ECU file ships

HELIX is a governance surface. It should make missing base binaries, malformed patches, shape mismatches, unresolved conflicts, and failed release checks visible before the final file is generated.

rule

Range and rule checks

Validate patched values against limits, rule packs, project policy, and known calibration constraints.
schema

Shape-aware merge safety

Maps, curves, and scalars are checked as calibration structures, not treated as anonymous text edits.
report

Explicit blocked states

If a base HEX/S19, compiled artifact, or required patch package is missing, the page should say so instead of showing false success.

fact_checkrelease readiness

blocked

A2L parsedPASS

base dataset loadedPASS

boost patch conflictsREVIEW

compiled release artifactMISSING

Inside HELIX

The calibration data workbench, end to end

From release readiness to compare, merge, and governed work-package review — real screens from HELIX.

touch_app Auto-scrolling — hover or tap any screen to pause & inspect

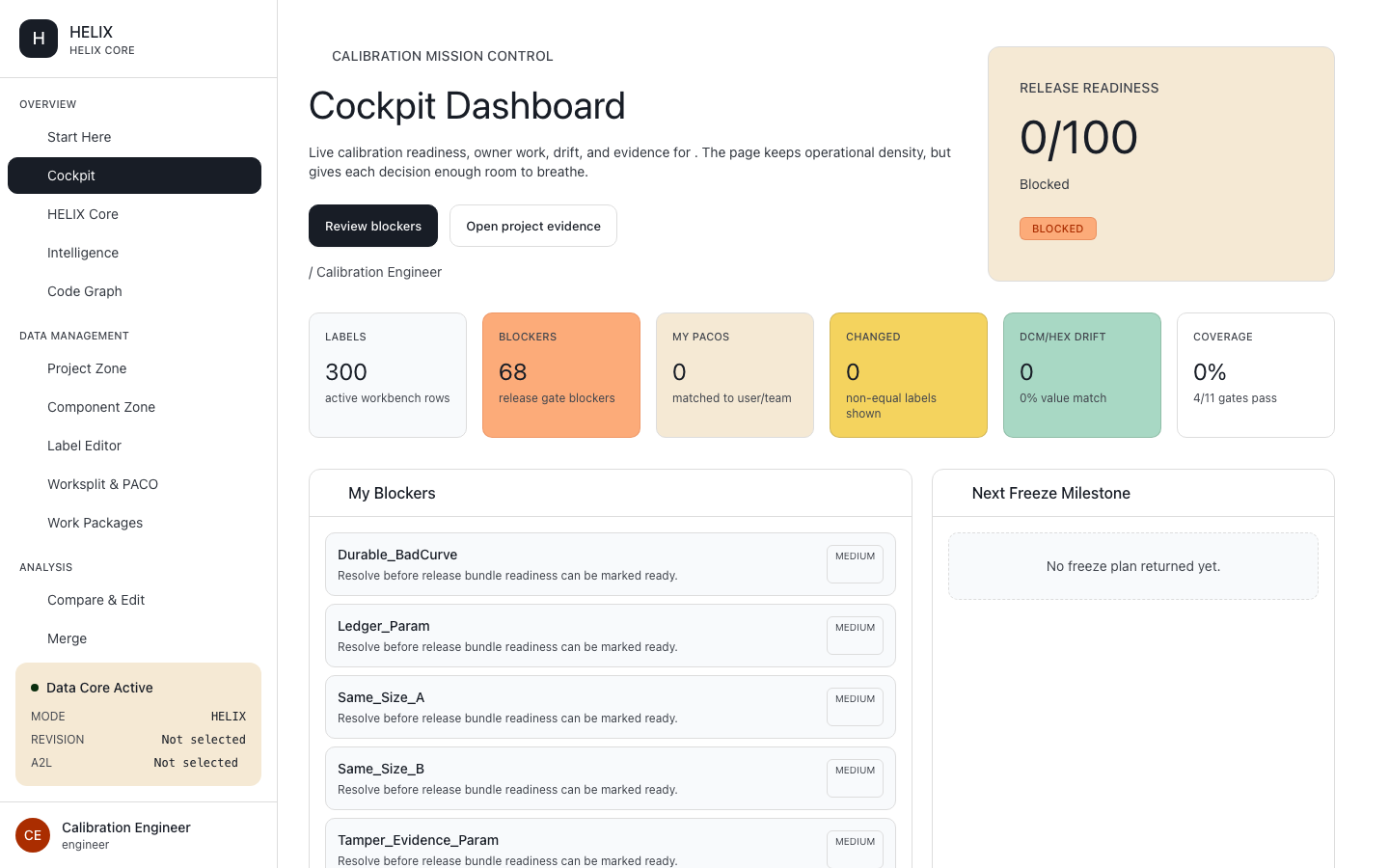

HELIX cockpit dashboard showing calibration release readiness, release-gate blockers, label drift, and DCM/HEX value match — Cockpit
Release readiness, blockers, and change evidence.

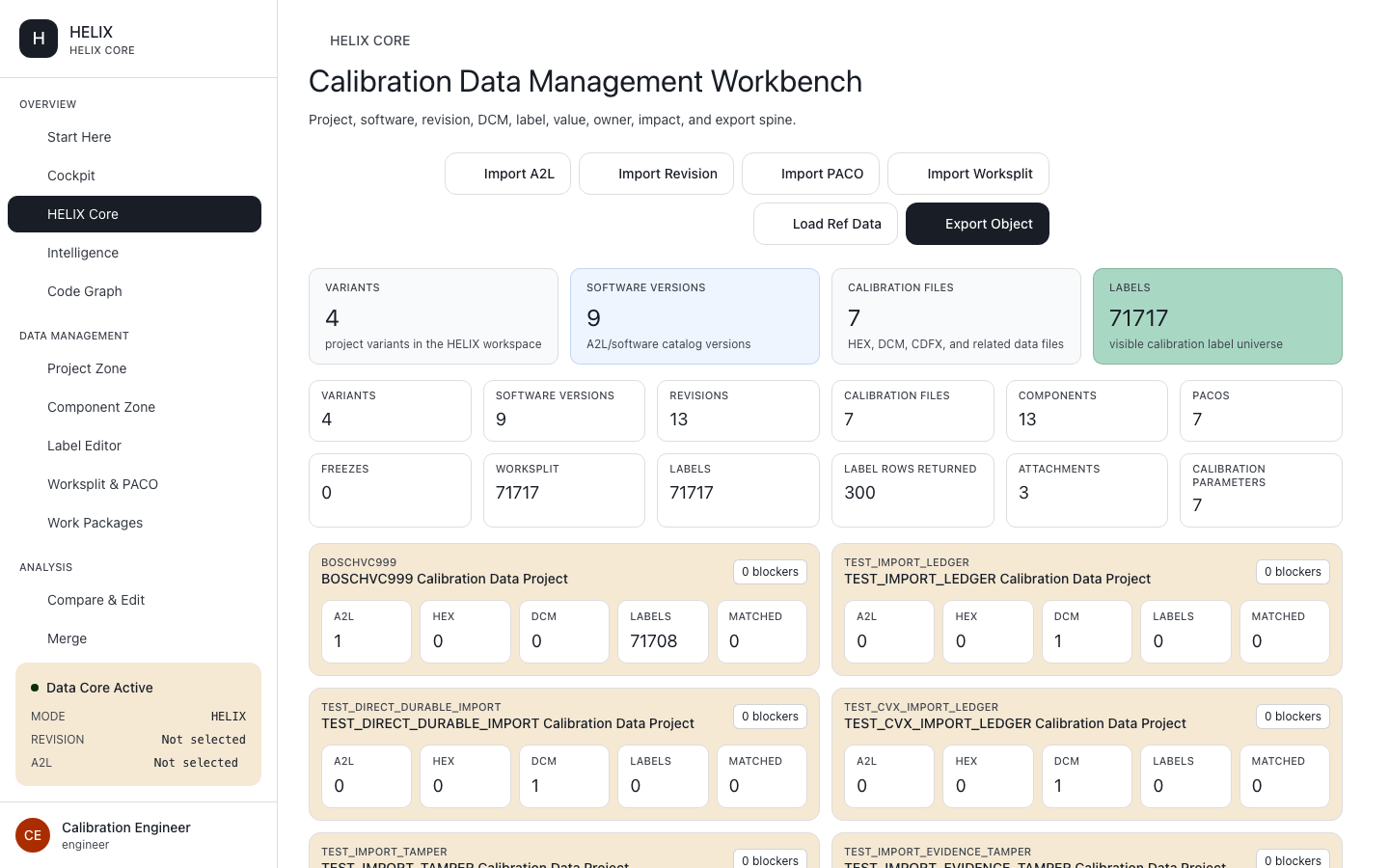

HELIX calibration data management workbench listing variants, software versions, calibration files, and labels — Data management workbench
Variants, software versions, and calibration files.

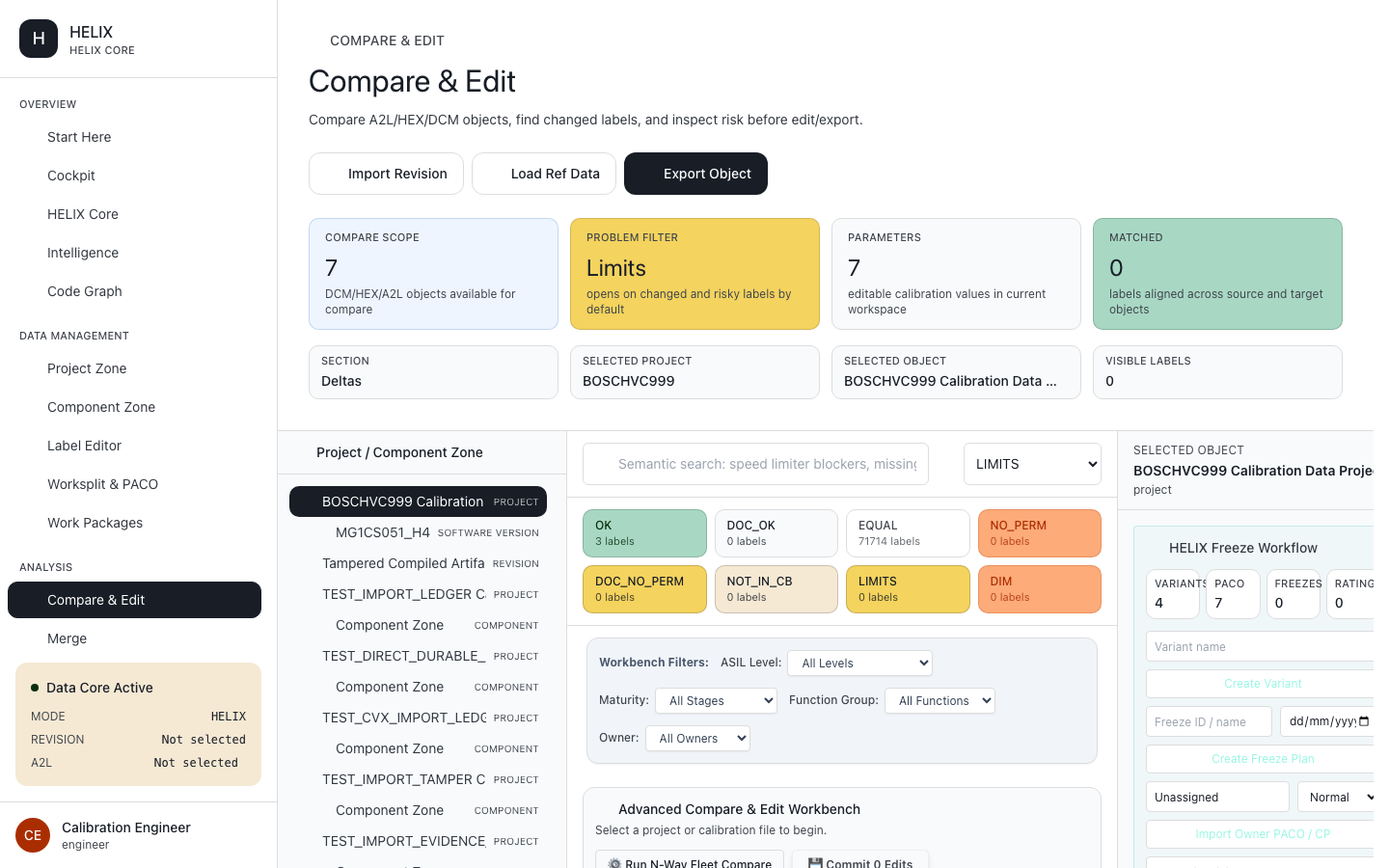

HELIX Compare and Edit view diffing calibration values, limits, and changed maps against a base dataset — Compare & edit
Shape-aware diff of maps, curves, and limits.

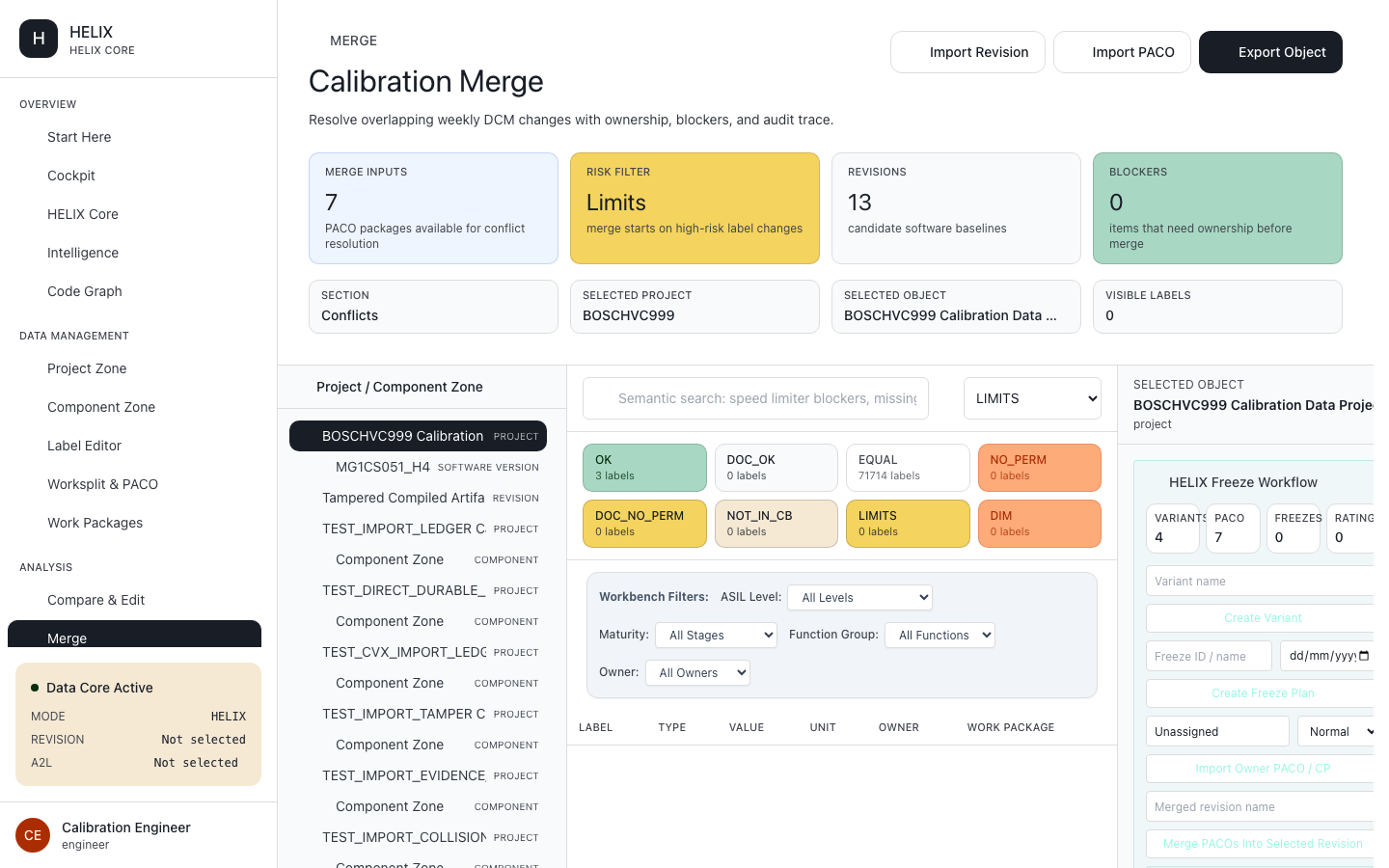

HELIX calibration merge view resolving overlapping DCM changes with conflicts and an audit trail — Merge
Reconcile overlapping DCM changes with audit trail.

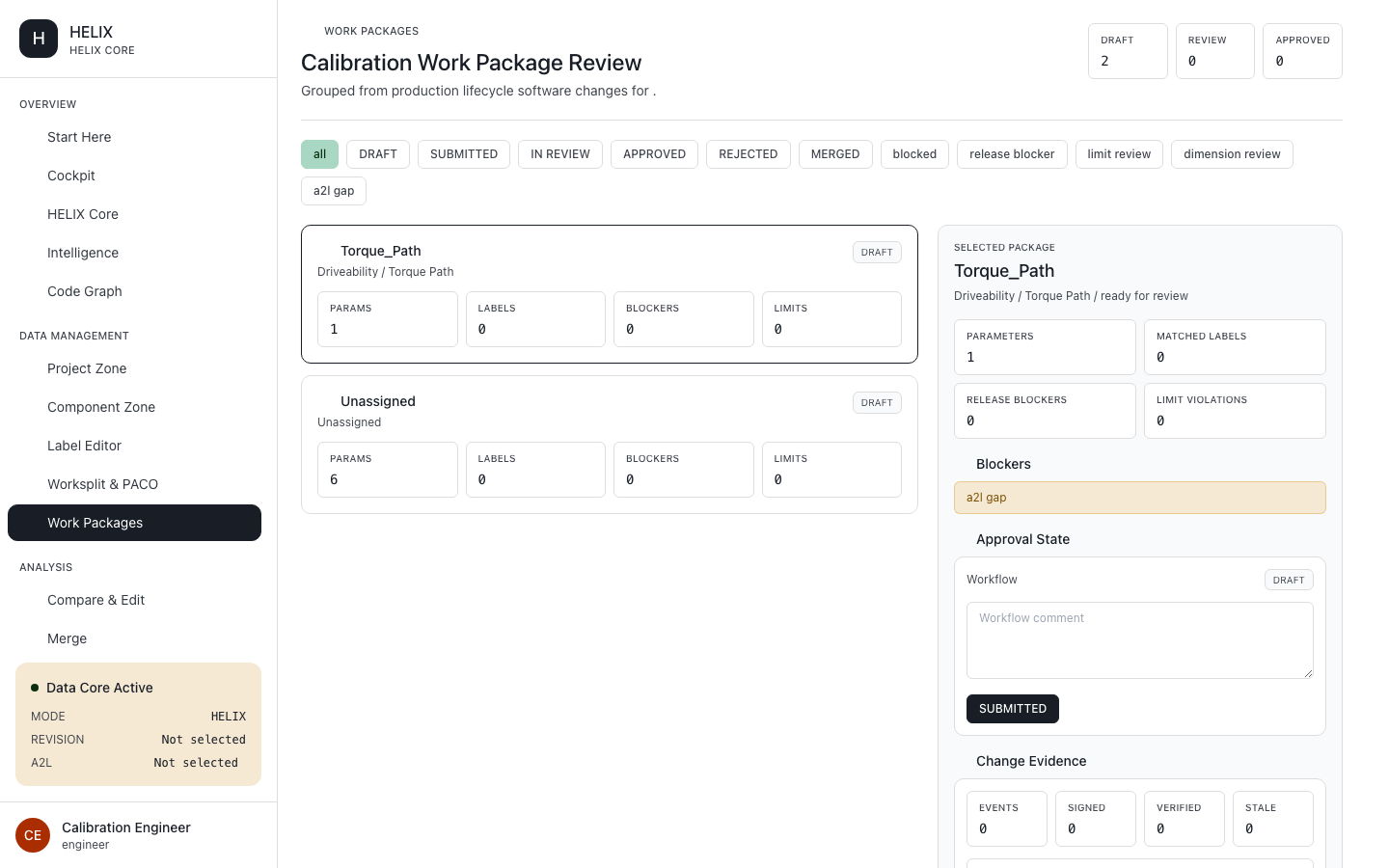

HELIX work package review with draft, review, and approved states, release blockers, and an approval workflow — Work packages
Draft → review → approved with release blockers.

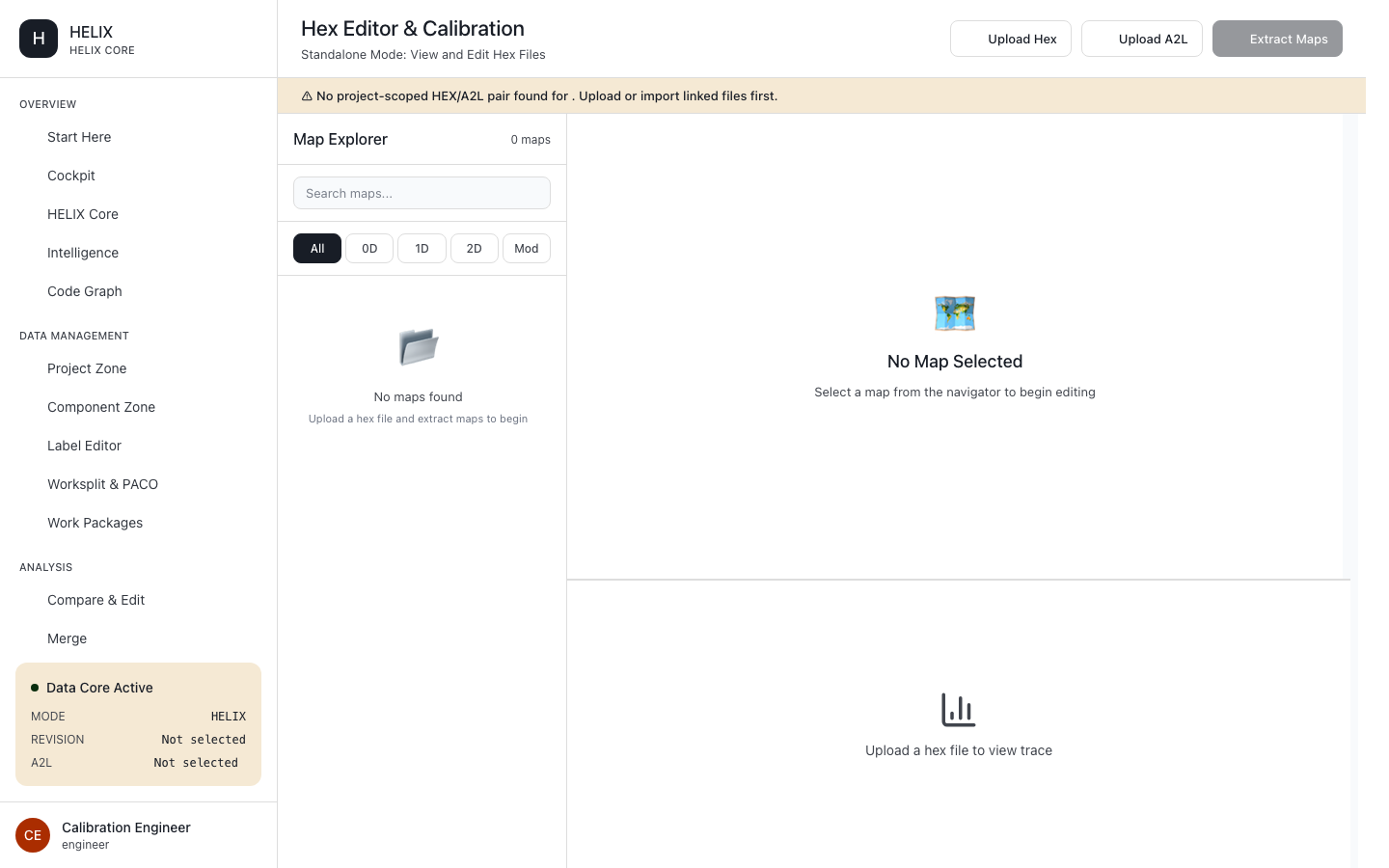

HELIX hex editor and calibration view with Upload HEX, Upload A2L, and Extract Maps tooling — Hex & A2L
Upload HEX/A2L and extract calibration maps.

Local-first & verifiable

Your calibration data stays on your bench

dns

Runs next to the data

Calibration files can be managed close to the engineering data, with no need to expose release work to unrelated tooling.

sync_alt

Interoperable, not lock-in

HELIX works with the ECU description, base dataset, and patch formats teams already exchange. Keep your existing upstream and downstream tools.

fingerprint

Reproducible records

Each release candidate carries structured evidence: source files, patch sources, merge decisions, validation status, and generated artifact.

blockThe old way

A2L in one folder + base HEX in another + DCM patches over email + manual variant comparison + uncertain release status.

Many files. Weak traceability.

check_circleThe Helix way

One governed calibration data-management path from A2L and base HEX/S19 to approved DCM/CDFX/PACO patches, release checks, and final ECU artifact.

One release truth. No silent overwrite.

FAQ

Common questions

Does HELIX replace MDX or XHandbook?expand_more

No. MDX is for vehicle and ECU data viewing, including oscilloscope-style analysis. XHandbook is for ECU documentation. HELIX is for ECU calibration data management, patch governance, validation, and final release generation.

What files does HELIX manage?expand_more

HELIX manages ECU description and calibration dataset files such as A2L / ASAP2, base HEX/S19/SREC, and calibration change packages such as DCM, CDFX, and PACO.

Is HELIX the vehicle-data viewer?expand_more

No. Vehicle or ECU data viewing belongs on the MDX page. HELIX should talk about calibration datasets, variant changes, validation, and final ECU file generation.

Does HELIX generate the final ECU file?expand_more

Yes. After changes are imported, reviewed, merged, and validated, HELIX is positioned to generate the final ECU-ready release artifact such as HEX or S19.

Where does my calibration data go?expand_more

HELIX keeps calibration release evidence close to the source files: A2L, base dataset, patch package, reviewer decision, validation status, and generated artifact.

Will I have to convert my files?expand_more

No. HELIX works with the calibration formats teams already exchange — A2L / ASAP2, base HEX/S19/SREC, and DCM, CDFX, and PACO change packages. Adoption is additive, not a migration.

What is the main value of HELIX?expand_more

HELIX prevents silent overwrite and weak traceability across calibration patch batches. It makes release readiness explicit — linking source A2L, base dataset, approved changes, and validation — before the final ECU artifact is generated.

ECU data management

See your calibration release
controlled in HELIX.

Book a technical demo and walk through A2L upload, base dataset handling, DCM/CDFX/PACO patch review, validation, and final ECU artifact generation.

Book a demo arrow_forward Read the docs

HELIX: ECU calibration data management.
